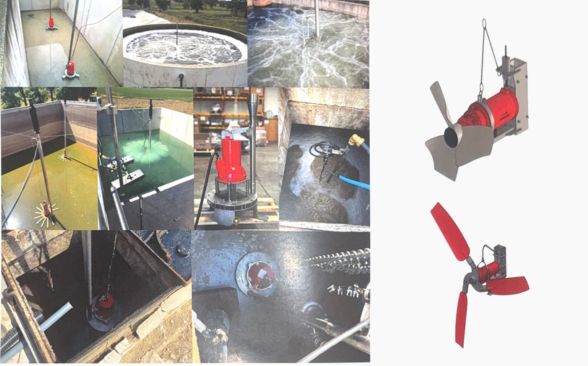

Submersible Mixer

MX-GI/MX-II

These mixers are ideal for mixing and homogenization of liquids and are the result of our long experience in wastewater treatment. Different rotation speeds, obtained using multipole motors, propellers with self- cleaning profiles and two or three blades, outside components in cast-iron or Stainless steel, make mixers MX-GI suitable for a wide range of application, with top hydraulic efficiency results. A special lifting equipment consisting of a manual winch and mixer orientation device, is available upon request.
Power: 0.75 kW to 14.2 kW
Rotational Speed: 1400 RPM

MX-GIR

Designed for mixing of sewage with high content of solids and sand, and for processing zootechnical fluids, the slow speed mixers of MX-GIR series are also often applied in municipal water treatment plants with excellent results. When the purpose, for instance, is to keep solids in suspension, it is advisable to utilize mixers having large impeller diameter and low rotational speed. The mixer orientation system, supplied with the lifting equipment, allows the flow to be directed to avoid formation of dead zone Power: 2.2 kW to 18.5kW
Rotational Speed: 323 to 354 RPM

MX-GIR 800/1200

The MX-GIR 800 mixers are used in MBBR type plants where low peripheral speeds are required to keepthe carriers in suspension. The propellers of the MX-GIR 1200 mixers have been designed to maximize performance and reduce energy consumption. The selection and positioning of these machines are studied in detail and with the help of simulations to propose an optimal solution in terms of performance and consumption.
Power: 3 kW to 9.2 kW
Rotational Speed: 70 to 140 RPM

Flow-maker

The AF series flow accelerators are used in the treatment of wastewater in nitrification tanks, de-nitrification, treatment of activated sludge, disinfection. They are also used in industrial mixing, in chlorination tanks, and in digesters of biogas plants to homogenize and prevent the stratification of the sludge. The slow rotationof the blades,obtained byapplying a reducer, makes the flow accelerators ideal for mixing and recirculating, producing currents and efficiently distributing the oxygen supplied by the aeration systems.
Power: 1.5 kW to 5.5 kW
Rotational Speed: 32 to 34 RPM
