Automatic Mechanical Screening for WASTE WATER & STROM WATER
In today's demanding wastewater
treatment landscape, effective
solids removal is crucial for operational efficiency. Our advanced
mechanical screens are engineered to meet a wide range of
applications, ensuring that your treatment process runs smoothly
and efficiently.

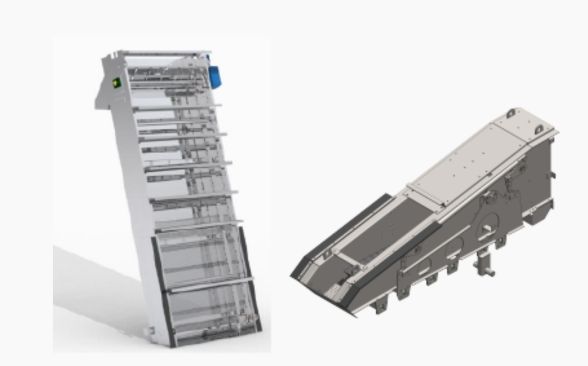

Multi-rake mechanical screens are commonly used as both fine
and coarse screens in all kind of medium and large-sized water and
wastewater treatment plants and pumping stations.
Working Principle:
Water flows through the bar screen and solid waste having dimensions greater than the bar openings are captured by the bars of screen. When level difference between upstream and downstream reaches the limiting value in consequence of the solid wastes accumulated on the screen, cleaning mechanism is activated. The chain-mounted rakes clean the bars from the front side of the screen. They collect and elevate the screenings and discharge into a conveyor with the help of scraper.
Specification:
| Bar Spacing | 3mm to 100mm |
|---|---|
| Channel Width | 400mm to 3,000mm |
| Channel Depth | 1,000mm to 20,000 mm |
| Material Stainless Steel | 304/316 |
Benefits:
- Feasible for deep channels
- Available for high flow-rates
- Automatic cleaning mechanism activated by time or
- level sensors
- High waste discharge capacity
- Higher Number of rakes Low maintenance
