Cycloxy - The Art of Aeration

We are the First Company in India Who have patent in Jet Aeration for Waste Water Treatment Which is Innovative and Novel Technology in Design.

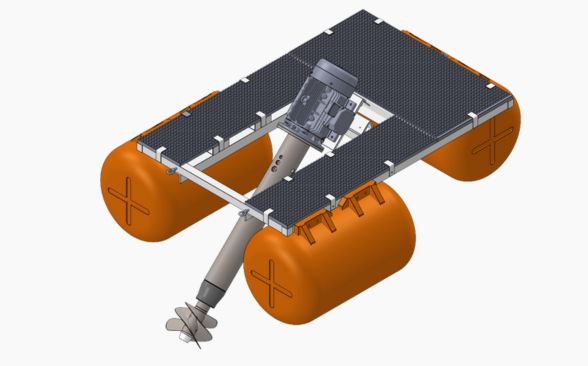

The state-of-the-art Cycloxy Jet Aspirator Aerator is indigenously designed with a high-performance Air Jet Screw, Hollow Shaft, Housing Assembly, and Electric Motor. It operates at 1400 rpm, creating a vacuum that draws in atmospheric air through intake ports. Air travels through the Hollow Shaft and is pushed underwater by the Air Jet Screw, releasing fine air bubbles that ensure efficient aeration and powerful mixing. This design maximizes oxygen diffusion and transfer, enhancing the breakdown of organic matter and maintaining optimal dissolved oxygen levels in the aeration tank.

Mounting Arrangement:

• Float Mount Assembly
• Uni-Float Mount Assembly

Key Features:

• Optimized Oxygen Transfer Efficiency (1.8 To 2.0 Kg 02/kw-hour)
• Dual Functionality - Superior Mixing & Efficient Aeration
• It's A Complete Aeration Equipment In Itself
• No Add On Accessories (Blower, Piping Etc.) Required
• Silent Operation (Noise Level < 85 Dba)
• No Membranes & Hence No Chocking, Frequent Cleaning & Replacement Of Any Kind Is Required
• Easy And User-friendly Working
• Nominal Maintenance
• Quick And Simplified Multiple Installation Options (Wall, Bridge And Floats)
• Wetted Parts In Stainless Steel 304/316
• Mounting Structures In Stainless Steel 304 And 316
• 2 Years Warrantee
• High Buoyancy Superior Quality Floats With Puff Filled
